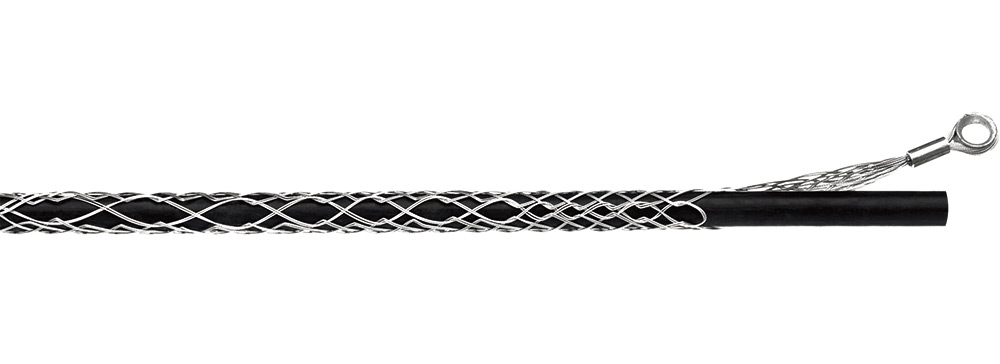

RP-600-G

Cable and rope installation stocking

Mainly for fastening, holding and mounting as well as the strain relief of movable cables and lines on cranes, shaft and lifting devices. The advantage against conventional suspensions with clamps lies in the prevention of point stress and excluding kinking and breaking leads. These stockings are particularly suitable and in use worldwide for wind power plants, suspension railways and cranes. The highly flexible mesh made of double galvanized steel strands is hand-woven and fitted with a suspension eyelet (round thimble).

Application instructions cable sleeves open to the side

RP-600-G

Product information

  • 2-Layered
  • 3-Layered (Enhanced)
  • Cable stocking RP-600-G

Sizes and technical data

For cables and ropes
with ø from – to		 Permissible tension load in kN / tons
approx.		 Thimble size
for bolt ø
approx. Mm		 Part number (for ordering)
08 - 15 mm 5,12 / 0,52 flexible rope eyelets RP - 610 - G
15 - 20 mm 6,40 / 0,65 flexible rope eyelets RP - 615 - G
20 - 30 mm 6,40 / 0,65 flexible rope eyelets RP - 620 - G
30 - 40 mm 8,96 / 0,91 flexible rope eyelets RP - 630 - G
40 - 50 mm 12,48 / 1,27 flexible rope eyelets RP - 640 - G
50 - 60 mm 13,87 / 1,41 flexible rope eyelets RP - 650 - G
60 - 80 mm 13,87 / 1,41 flexible rope eyelets RP - 660 - G
70 - 80 mm 25,60 / 2,61 flexible rope eyelets RP - 670 - G
80 - 100 mm 28,80 / 2,94 flexible rope eyelets RP - 680 - G
100 - 120 mm 35,60 / 3,63 flexible rope eyeletse RP - 6100 - G
Download Infos
Do you have questions about the product RP-600-G or would you like a quote?
Please use our online enquiry ...

Please fill in our enquiry form - we will reply as soon as possible!
(*= mandatory fields)

What is the sum of 6 and 4?

Lengths and material variants

Our cable stockings are available in standard lengths
700 mm (500 mm braiding section 200 mm head section).
Of course, the products are also available in the following versions:

  • Stainless steel (stainless steel braiding)
  • Stainless steel reinforced (three-layer design for higher tensile strength)
  • Strained Bowden cable
  • Plastic coated strands

We are flexible!

Greater loads and higher tensile forces and special designs on request.
Produceable immediately in our own production facilities.
Please contact us!

We strictly sell goods under our terms and conditions. Mistakes as well as misprints reserved.
