RP-600-H

Cable and rope holding stocking

The lighter weaving of these stockings makes them lighter and easier to handle. Nevertheless, they are the safest and most efficient fastening medium for free-hanging cables and ropes. In switching cabinets, antenna systems, transformers, machinery or lift systems, the strain-relief and stress-free suspension with no risk of lead breaks with the pressed-on flexible eyelet is the best choice. Forget conventional clamp and bracket fastening; make use of the better system.

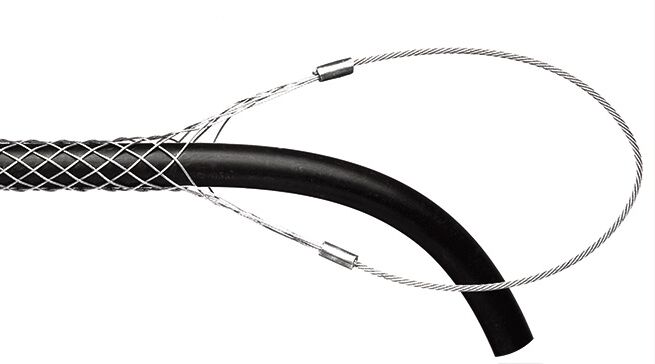

Cable stocking RP-600-H

RP-600-H

Product information

Sizes and technical data

For cables and ropes
with ø from - to
Permissible tension load in kN / tons
approx.
Thimble size
for bolt ø
approx. Mm
Braiding / total length
approx. Mm
Part number (for ordering)
08 - 15 mm 2.56 / 0.26 flexible rope eyelets 200 / 300 RP – 610 - H
15 - 20 mm 2.87 / 0.29 flexible rope eyelets 200 / 300 RP - 615 - H
20 - 30 mm 3.20 / 0.33 flexible rope eyelets 350 / 500 RP - 620 - H
30 - 40 mm 4.48 / 0.46 flexible rope eyelets 350 / 500 RP - 630 - H
40 - 50 mm 6.24 / 0.64 flexible rope eyelets 500 / 700 RP - 640 - H
50 - 60 mm 6.93 / 0.71 flexible rope eyelets 500 / 700 RP - 650 - H
Download Infos
Do you have questions about the product RP-600-H or would you like a quote?
Please use our online enquiry ...

Please fill in our enquiry form - we will reply as soon as possible!
(*= mandatory fields)

Please calculate 6 plus 8.

Lengths and material variants

Available in braiding total lengths 200 mm to 500 mm. Other lengths upon request! Of course, the products are also available in the following versions:

  • Stainless steel (stainless steel braiding)
  • Stainless steel reinforced (three-layer design for higher tensile strength)
  • Strained Bowden cable
  • Plastic coated strands

We are flexible!

Greater loads and higher tensile forces and special designs on request.
Produceable immediately in our own production facilities.
Please contact us!
